Wood Crusher for Larger Material

Flowchart of the Biomass Briquette Press Technology:

Raw material→ Crusher/Hammermill → Drier → Biomass Briquette Machine → Packing Machine → Finished Product

Wood Crusher

It’s necessary to use a wood crusher if your raw material is raw wood. Wood crusher can process raw wood with size less than 200mm(diameter) and moisture below 30%. After crushed, the output size can reach diameter 3-5mm , which is suitable for further briquetting and drying.

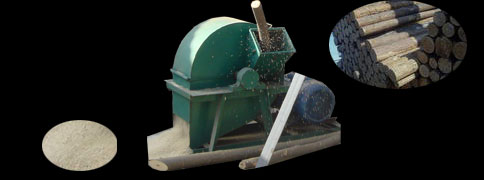

Model BFSD Wood Crusher (For fresh or dried raw wood)		Product Picture
Capacity(kg/h)	400-500
Diameter of Feeding Material	Not more than 150-200mm
Size of crushed material	Max. Ø5×5mm
Motor	11kw
Gross/Net Weight	400/350kg
Overall Dimension (mm)	1250*700 *910

The wood crusher produced by our company is a kind of newly-developed wood crushing equipment for raw wood, which is an innovation on the basis of all the traditional crusher-making theories both home and abroad. It is composed of machine body, knife chipping part, chips re-crushing part and sieving part, etc. It combines both chipping and crushing in one machine, can make sawdust in one passage, no need to use wood chipper for pre-processing of wood logs.
To ensure security, the feed inlet of this machine adopts self-suction design to avoid serious damage to operaters.
It has the advantage of low investment and energy consumption, high output, high-quality finished products, easy to operate and maintain, etc.
