Hammer Mill for Smaller Material

Flowchart of the Biomass Briquette Press Technology:

Raw material→Crushing (Crusher/Hammermill) → Drier → Biomass Briquette Machine → Packing Machine → Finished Product

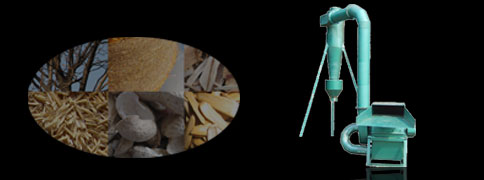

Wood Hammer Mill (Smaller and softer  material)

Our BFSC hammer mill is a machine whose purpose is to shred material into fine particles. A hammer mill is essentially a steel drum containing a vertical or horizontal cross-shaped rotor on which pivoting hammers are mounted. The hammers are free to swing on the ends of the cross. The rotor is spun at a high speed inside the drum while material is fed into a feed hopper.
The material is impacted by the hammers on the ends of the rotating cross and thereby is shredded and expelled through screens in the drum.
This machine is suitable for milling may kinds of material, such as:
1.BFSC Hammer mill with Motor for wood chip/tree trimmings/wheat straw/plant stalk etc)

Model:BFSC Hammer mill with motor		Product Picture
Capacity(kg/h)	500-700
Size of Feeding Material	Max.diameter 50mm No limit for length
Final Size after milling	Ø5×5mm
Motor	18.5kw
Gross/Net Weight	550/650kg
Overall Dimension (mm)	1700*1150*1200
	Cyclone (2400*800*800)

2. Mobile BFSC Hammer mill with Diesel Engine (for wood chip/tree trimmings/wheat straw/plant stalk etc)

Model BFSC Hammer mill with Diesel Engine		Product Picture
Capacity(kg/h)	500-700
Size of Feeding Material	Max. diameter 50mm No limit for length
Final Size after milling	Ø5×5mm
Motor	Diesel engine: 18HP(electric starting)
Gross/Net Weight	550/650kg
Overall Dimension (mm)	1700*1150*1200
	Cyclone (2400*800*800)

3. Mobile hammer mill (with diesel engine and electric motor for dual-purpose) (for wood chip/tree trimmings/wheat straw/plant stalk etc)

Model: BFSC-DM BFSC Hammer mill		Product Picture
Capacity(kg/h)	500-700
Size of Feeding Material	Max. diameter 50mm No limit for length
Final Size after milling	Ø5×5mm
Double engine	Motor engine: 18.5kw
	Diesel engine: 18HP(electric starting)
Gross/Net Weight	750/850kg
